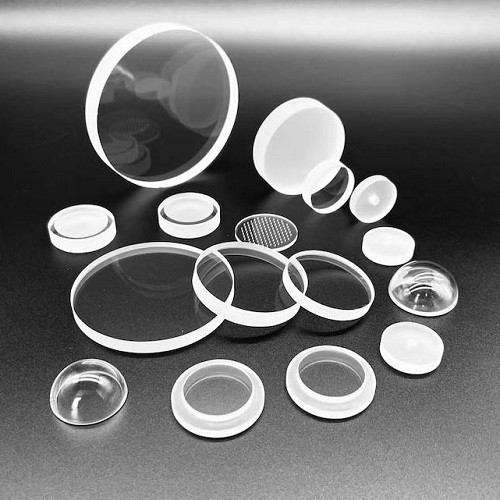

Corning 7980 UV Silica Quartz Plates

Category： Quartz Plate
Material:Corning 7980 UV Silica Quartz
Tolerance:±0.02mm to ±5mm
Acid and Alkali Corrosion Resistance
Size:Custom
INQUIRY EMAIL

Corning 7980 UV Silica Quartz Plates for Medical Devices
Corning HPFS (High Purity Fused Silica) quartz glass offers a range of grades to support diverse product applications, ensuring the delivery of qualified and reliable products to our customers. Glass codes such as 7980, 7979, and 8655 represent high-purity fused silica glass, renowned for its excellent optical properties. Key characteristics of our products include extremely low refractive index variations, ensuring the highest level of homogeneity; minimal birefringence values; large dimensions; outstanding light transmission covering from the ultraviolet to infrared spectra; and an ultra-low coefficient of thermal expansion. These features are crucial in meeting the stringent requirements of our customers.

Applications:
Quartz glass finds extensive use in high-tech industries such as semiconductor, medical, communication, laser, infrared, electronics, measurement instruments, military, aerospace, and more. Our company processes glass materials from different manufacturers, customizing special size specifications according to customer requirements.
Illumination, medical applications, optics, precision instruments

Sizes:
Diameter ranging from 1mm to 300mm

Thickness	0.5 to 200mm ±0.05mm
Length	2 to 200mm +0/-0.25mm
Width	2 to 180mm +0/-0.25mm
Metrology Wavelength	632nm
Clear Aperture (CA)	90%
Reflective Wavefront	1/4 wave /in
Parallelism	< 30 arc seconds
Cosmetics	40/20
Edge Finish	Fine Edge Ground
Roughness	< 1.0nm RMS

Our Services:
Glass shaping, CNC machining, glass polishing, particle beam processing, magnetic flux conversion processing, grinding, coating, lightweighting, custom shaping, sinkholes, drilling and coring, edge and bevel polishing, 3D profiling, chamfering, grooving, laser cutting and marking, metrology, precision spacing polishing, double-sided polishing, optical assembly, measurement, and deep processing of brittle and hard materials.
Trust in our expertise to provide comprehensive processing services for Corning 7980 quartz glass, meeting the demands of various high-tech industries with precision and reliability."

Tags: Corning 7980 UV silica quartz plates
