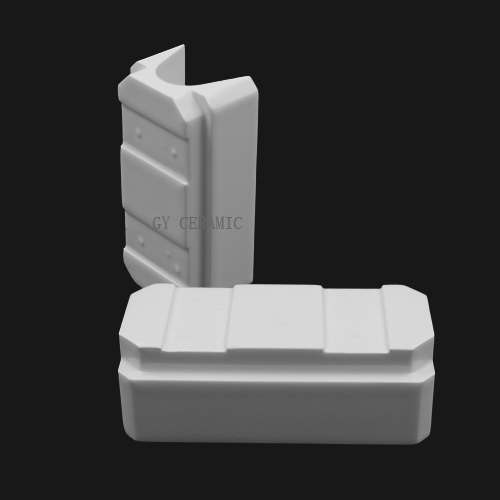

  • Ceramic Cavity for Alma Harmony and Harmony XL - Image 1

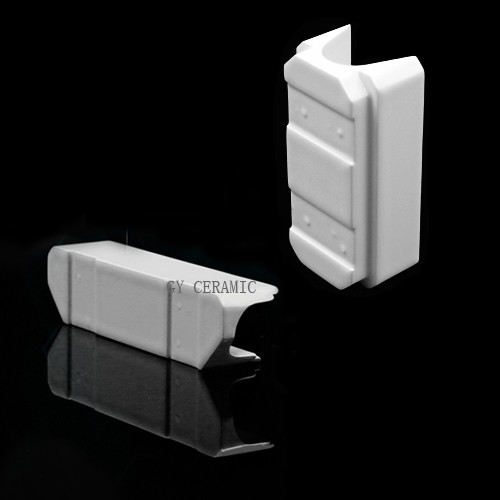

  • Ceramic Cavity for Alma Harmony and Harmony XL - Image 2
Ceramic Cavity for Alma Harmony and Harmony XL - Image 1Ceramic Cavity for Alma Harmony and Harmony XL - Image 2

Ceramic Cavity for Alma Harmony and Harmony XL

  • CategoryCeramic Reflector
  • Material99% Alumina Ceramic
  • SurfaceFull glazed
  • 97.8% reflectance efficiency at 1000nm
  • ApplicationAlma Harmony and Harmony XL Laser Systems
Share

Ceramic Cavity for Alma Harmony and Harmony XL

Product Description

The Ceramic Cavity green body is made of 99% Al2O3, and the green body is fired at an appropriate temperature to retain proper porosity and proper green strength. The surface of the reflector is fully coated with high-reflectivity ceramic glaze. Compared with the gold-plated reflector, the biggest advantage lies in its extremely long service life and diffuse reflection.


Physical properties
* Color: White
* Bulk density (fired), Mg/m3 : 3.2
* Porosity (apparent), % nominal: 20
* Flexural strength (ASTM C1161, 3-point), MPa: 150
* Thermal expansion coefficient 200-500C, 10-6/C: 7.9 200-1000C, 10-6/C:9.0

Prime features Of Alma Ceramic Cavity

Surfaces can be sealed and coated with a solarization-resistant glaze to give high bulk reflectivity
97.8% reflectance efficiency at 1000nm
Reflectance efficiency exceeds 96% across the wavelength range 500-2000nm(see curve)
Controlled porosity
Good thermal conductivity

High electrical resistivity
