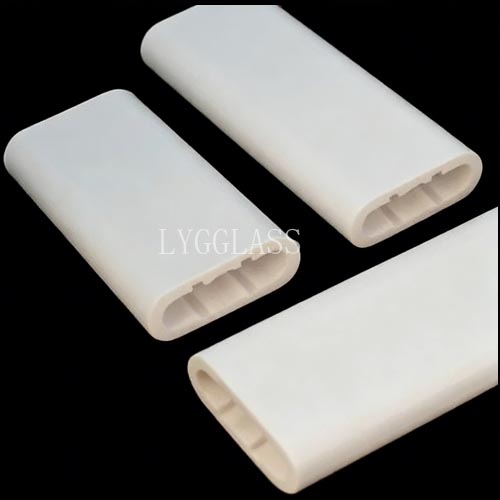

Ceramic Laser Reflector for Finemec Orion Laser System

  • CategoryCeramic Reflector
  • MaterialAlumina 99% Al2O3
  • Good thermal conductivity
  • 97.8% reflectance efficiency at 1000nm
  • ApplicationFinemec Orion Laser System
Share

Product Description

This Ceramic Laser Reflector use for Finemec Orion Laser System.By effectively harnessing the properties of ceramic materials,laser systems can achieve better performance.higher power output,and improved reliability.

Main physical characteristics:
Material: Al2O3
Color: White
Density: 3.1g/cm³
Porosity: 22%
Flexural strength: 170Mpa
Thermal expansion coefficient:  7.9×10-6--/С(200~500℃)
                                               9×10-6/С(200~1000℃)

Advantage Alumina ceramic Laser cavity reflector

1. Dimensional tolerance in height direction can achieve tolerance ≤1.0mm, other dimensional tolerances canreach 0.5mm
2. The surface is fully glazed to achieve maximumre flectivity and easy to clean
3. The reflectivity reaches 97% at the wavelength of 600-1000nm
4.The reflectivity exceeds 95% in the wavelength range of 380-1100nm
5. The body has proper porous and high strength characteristics


Standard parts are available in stock, please contact if you need.
For custom fabrication, you are welcome to inquire!
