Product Overview Our observation window glass (sight glass) line is designed to deliver safe, clear, and durable viewing in a wide range of process and equipment environments. From high-temperature furnaces and chemical reactors to laboratory instruments and precision medical or aerospace devices, we manufacture windows in multiple shapes and materials to meet your exact operating conditions.

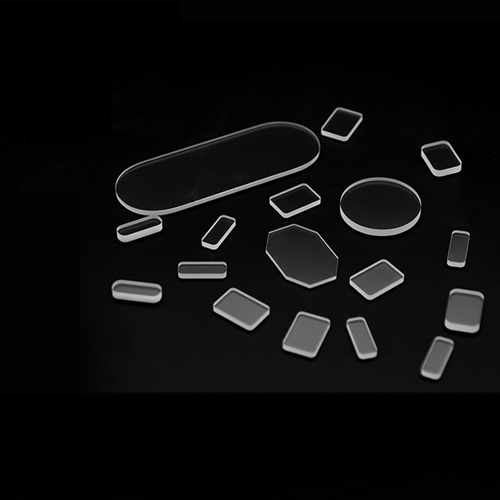

Available Shapes

Circular windows: The industry standard for balanced stress distribution and easy sealing; ideal for most equipment.
Elliptical/oval windows: Wider field of view with compact footprint; well-suited to angled or limited-space viewing.
Square/rectangular windows: Maximizes viewing area for rectangular ports; simplifies integration on flat panels.

Material Options and Key Advantages

Fused Quartz Observation Windows (Recommended for extreme environments)

Temperature resistance: Stable at ≥1200°C (thermal-shock tolerant with appropriate design and mounting)
Excellent chemical resistance to acids/alkalis and solvents; ideal for chemical and lab environments
High optical transmittance from deep UV to IR; delivers crisp, true-color visibility
Very low thermal expansion; resists cracking under rapid temperature changes Note: Like all silica materials, quartz is not resistant to hydrofluoric acid; please consult for chemical compatibility.

High-Borosilicate Tempered Glass Windows

Strong thermal-shock resistance and high mechanical strength after tempering
Clear, cost-effective, and reliable for medium-temperature applications
Widely used for general process viewing and equipment enclosures Typical use: mid-temperature service (temperature limits depend on thickness and design; consult our team).

Sapphire (Al2O3) Glass Windows

Exceptional hardness (scratch and wear resistant); maintains clarity in abrasive environments
Outstanding optical transmission and chemical stability
Suitable for precision devices and high-stress viewing where maximum strength and durability are critical Typical use: high-pressure, high-abrasion, or critical optical reliability applications.

K9 (BK7-equivalent) Optical Glass Windows

High optical clarity with excellent homogeneity; easy to machine for custom geometries
Ideal for ambient or moderate conditions requiring superior imaging quality Typical use: general observation, imaging systems, and instruments operating at room temperature or modest thermal load.

Common Applications

Industrial furnaces and kilns: real-time process observation
Chemical reactors and process vessels: corrosion-resistant viewing
Laboratory and analytical instruments: clear visibility and optical accuracy
High-temperature machinery: robust monitoring windows
Medical and diagnostic equipment: precise, clean optical interfaces

Aerospace and defense systems: rugged, high-clarity observation ports

Customization and Engineering Support We tailor each window to your exact specifications:

Dimensions and geometry: circular, oval, square/rectangular; flat or domed; countersunk or stepped designs
Thickness optimization: engineered for target pressure, temperature, and viewing area
Edge finishing: beveled, chamfered, C-edge, or polished for stress relief and improved sealing
Surface quality and flatness: optical-grade polish available for high-resolution viewing/sensing
Coatings and surface treatments:
Anti-reflection (single or broadband AR)
Hydrophobic/oleophobic or hydrophilic anti-fog
Anti-glare or neutral-density
ITO transparent heater coatings for anti-fog/anti-ice
Protective hard coats (for non-sapphire substrates)
Mounting and sealing options:
Frames/flanges to DIN/ANSI/ISO standards
Gaskets in Viton/FKM, EPDM, PTFE, graphite, or metal seals per media and temperature
Viewport assemblies (bolt-on, clamp ring, weld-in), including vacuum KF/CF options
Cleanliness and packaging: cleanroom-grade cleaning and double bagging available for sensitive environments
Documentation: material certificates, dimensional inspection, pressure/thermal analysis, and test reports available upon request

Performance Guidance by Material

Fused Quartz: Select for the highest temperature stability, low thermal expansion, and strong chemical resistance. Excellent for thermal cycling. Pair with high-temperature gaskets and appropriate flange design for safe operation.
High-Borosilicate Tempered Glass: Best overall value for medium-temperature processes with solid mechanical strength and thermal-shock resistance.
Sapphire: Choose when maximum surface durability, scratch resistance, and strength are needed (abrasive media, frequent cleaning, or high-pressure conditions).
K9/BK7 Optical Glass: Ideal for clear imaging at ambient conditions; cost-effective for precision viewing where extreme thermal or chemical loads are not present.

Quality and Reliability

Produced under stringent quality control with 100% inspection of critical dimensions and appearance
Optical surface quality and flatness verified to specification when required
Thermal and mechanical design support available (FEA and safety factor recommendations)
Compliance with common industry practices/standards can be supported upon request (e.g., tempered glass requirements, sight glass guidelines, material traceability)

How to Specify Your Observation Window Share the following to receive a fast, accurate proposal:

Material: Quartz / High-borosilicate tempered / Sapphire / K9 (BK7)
Shape and size: OD/ID or length × width; viewing area; thickness; tolerances
Operating conditions: temperature range, pressure/vacuum, thermal cycling, media exposure (chemicals, abrasives)
Mounting details: flange/frame standard, bolt pattern, groove design, gasket material
Optical requirements: transmission band, surface quality, flatness, coatings
Quantity and delivery target: prototype, small batch, or volume production
Documentation and testing: certificates, inspection reports, pressure or thermal shock testing

Why Work With Us

Tailored solutions: Custom size, shape, and material to fit your equipment exactly
Proven quality: Rigorous inspection and process control for consistent performance
Expert guidance: Experienced engineers advise on material selection, thickness, and sealing
Responsive service: Rapid quotations, flexible MOQs, and reliable lead times
Send Your Inquiry Whether you need a high-temperature fused quartz window or an ultra-durable sapphire viewport, we will engineer the best solution for your application. Contact us now with your drawings or specifications to receive a personalized quotation and technical consultation.
