U Shaped Quartz Substrates For Collimator Coupler

U Shaped Quartz Substrates For Collimator Coupler

Category： Fiber Optics
Material:High Purity Fused Quartz
Size:Custom OD and Length
Tolerance:±0.05mm
Applications:Fiber Couplers
INQUIRY EMAIL

Product Name: U-Shaped Quartz Substrates for Fiber Collimator Coupler

Material:

High Purity Fused Quartz

Dimensions
Outer Diameter (OD): φ1.0mm ~ φ3.0mm
Inner Diameter (ID): φ0.5mm ~ φ2.5mm
Height (H): 0.5mm ~ 2.8mm

Length (L): 2mm ~ 80mm

Key Features
Thermal Expansion Coefficient: The coefficient of thermal expansion is matched to that of fiber, ensuring compatibility and performance stability.

Material: Made from high purity fused quartz, offering excellent optical and thermal properties.

These substrates are designed primarily for use as fiber couplers and fusion splice sleeves, including ribbon sleeves.

Applications
Fiber Couplers
Fiber Splitters
AWG (Arrayed Waveguide Grating)

WDM (Wavelength Division Multiplexing)

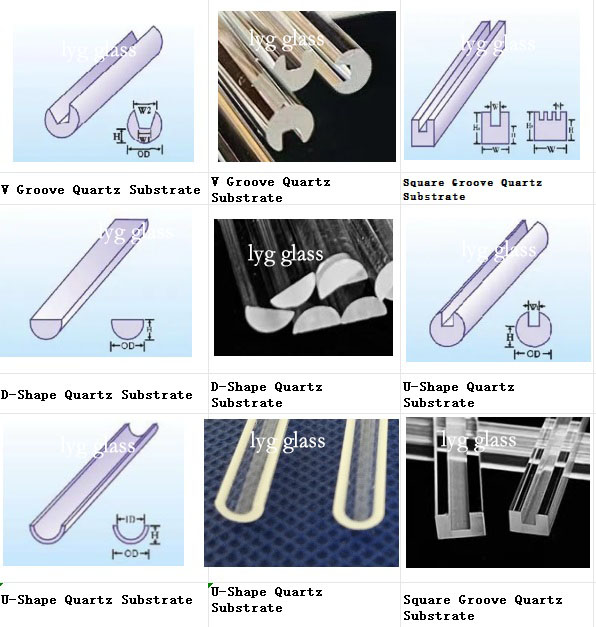

Shapes Available
D-Shape Quartz Substrate (A1)
U-Shape Quartz Substrate (A2)
Square Groove Quartz Substrate (A3)
W-Groove Quartz Substrate (A4)

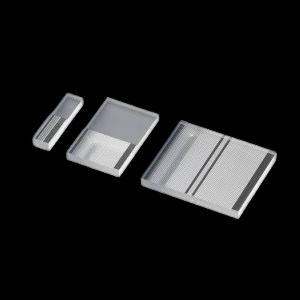

V-Groove Quartz Substrate (A5)
