Round Bottom Quartz Cell For Spectrophotometer

Product Item : 804
Category： Cuvettes and flow cells
Material:Fused Quartz Glass
Tolerance:±0.02mm to ±5mm
Acid and Alkali Corrosion Resistance
Size:Custom
INQUIRY EMAIL

Round Bottom Quartz Cell For Spectrophotometer

Quartz cuvettes also known as an absorption cell or sample cell, are available in different shapes,such as round quartz cuvettes,rectangular quartz cuvettes, and different volumes to suit various applications, with some designed for specific instruments.

We can customize quartz or glass cuvettes that meet your requirements based on your size specifications, environmental conditions, temperature, and acidity/alkalinity . Feel free to contact us.

Comparison of four type cuvettes

Comparison of four cuvettes
Characteristic	Ordinary (A)	Standard(B)	High (C)	High precision(D)
Transmit in visible wavelength	√	√	√	√
Transmit in UV wavelength	√	√	√	√
Transmittance T%>80%	√	√	√	√
Acid and alkali resistant	×	√	√	√
Organic Solvents	×	√	√	√
Temperature resistance 600℃	×	√	√	√
Transmittance T%>83%	×	×	√	√
Temperature resistance 1200℃	×	×	×	√
Zero sample interference	×	×	×	√
High presion experiment	×	×	×	√

Based on the wavelength range used, cuvettes can be divided into three main categories
Glass cuvettes :visible light
UV quartz cuvettes :ultraviolet-visible light
infrared quartz cuvettes: infrared light

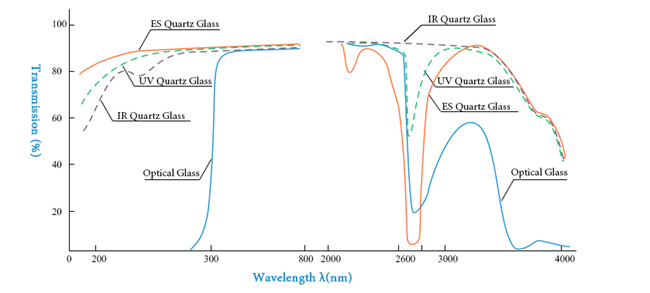

Transmittance of different materials
