Custom Quartz Coil Tube

Product Item : 206
Category： Quartz Tubing and Rod
Material:Borosilicate Glass,Quartz glass
Tolerance:±0.02mm to ±5mm
OD:1mm to 800mm
Length:Custom Sizes
INQUIRY EMAIL

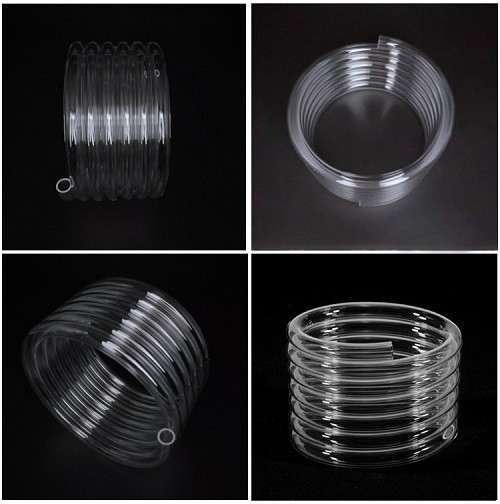

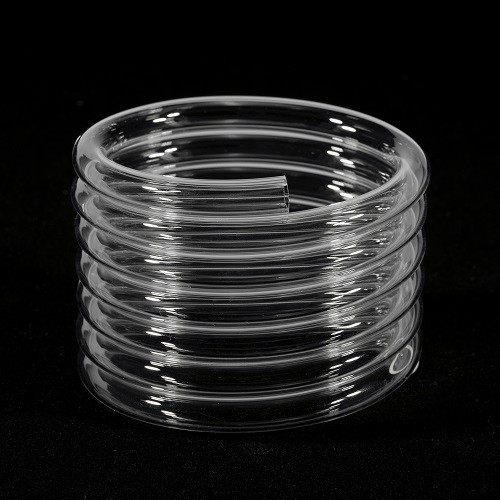

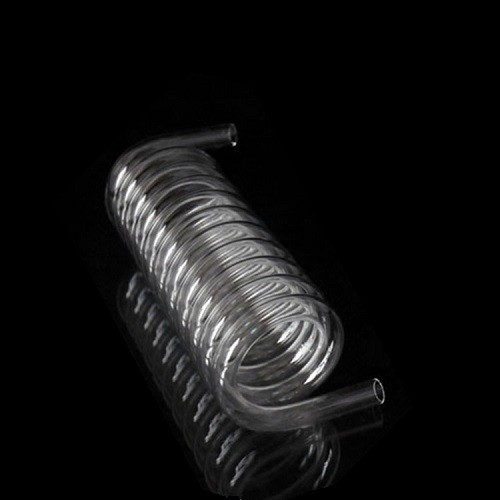

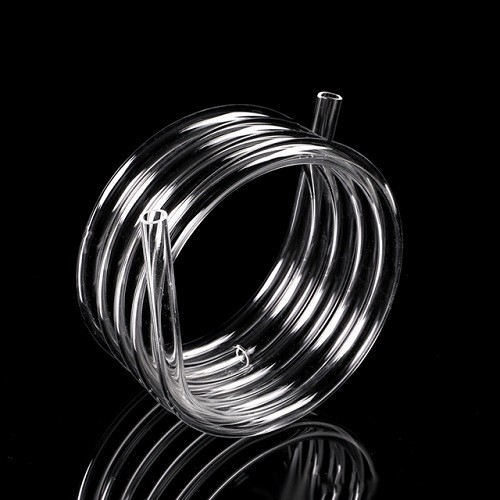

Custom Quartz Coil Tube

Quartz coil tubes are commonly used in the construction of various types of lamps, especially in high-intensity discharge (HID) lamps, halogen lamps, and certain types of UV lamps.The UV transparency of quartz is a key property that enables its use in a wide variety of applications involving UV light.

Quartz coil tubes are still used in fractionating columns for distillation processes, allowing for efficient separation of mixtures based on boiling points.

Physical properties

Material	99.99% Sio2
Density	2.2(g/cm²)
Degree of hardness moh' scale	6.6
Melting point	1732°C
Working temperature	1100°C
Max temperature can reach in a short time	1450°C
Visible light transmittance	Above 93%
UV spectral region transmittance	Above 80%
Annealing point	1180°C
Softening point	1630°C

Addantage of Quartz coil tubes

High Temperature Resistance
UV Transparency Quartz exhibits high transmittance for UV light, particularly in the UV-C range (100-280 nm) and UV-B range (280-320 nm).
Low Thermal Expansion
Chemical Resistance

We can customize the product according to your specific dimensional requirements. Welcome to inquire.
