Ceramic Reflectors For Beauty and IPL Applications

  • Category: Ceramic Reflector
  • Name:Alumina 99% Al2O3 Ceramic Reflector,
  • Advantage:High strength and hardness
  • Color:White and Glazed
  • Applications: IPL laser Applications
  • INQUIRY   EMAIL

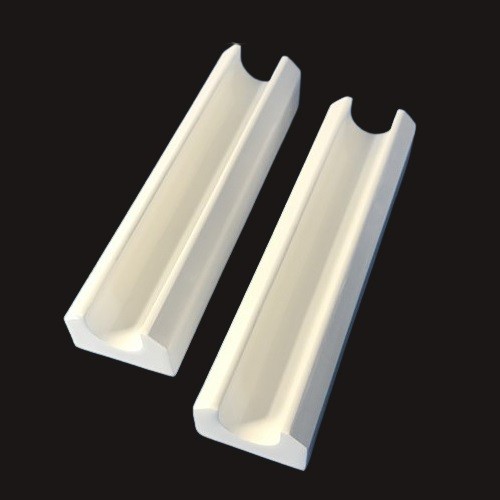

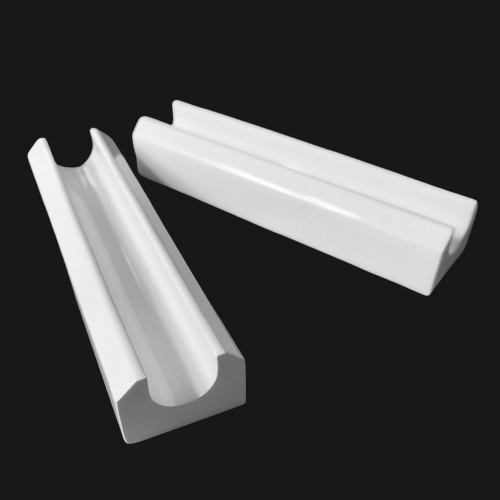

Glazed IPL Alumina Laser Cavity Ceramic Diffuser Reflector For Pump Chambers

The ceramic reflector's green body is made of 99% Al2O3, and the green body is fired
at an appropriate temperature to retain proper porosity and proper green strength.
The surface of the reflector is fully coated with a high-reflectivity ceramic glaze.
Compared with the gold-plated reflector, the biggest advantage lies in its extremely
long service life and diffuse reflection.

Prime features
* Surfaces can be sealed and coated with a solarization-resistant glaze to give high bulk reflectivity
* 97.8% reflectance efficiency at 1000nm
* Reflectance efficiency exceeds 96% across the wavelength range 500-2000nm(see curve)
* Controlled porosity
* Good thermal conductivity
* High electrical resistivity

Applications
• Excimer
• Diffuse reflectors
• CO2 Laser
• Feedthroughs
• Solid state/NdYag
• Insulators, channeled cooling
• Diode pump
• Laser waveguides
• Ion lasers
• Ion laser tubes
