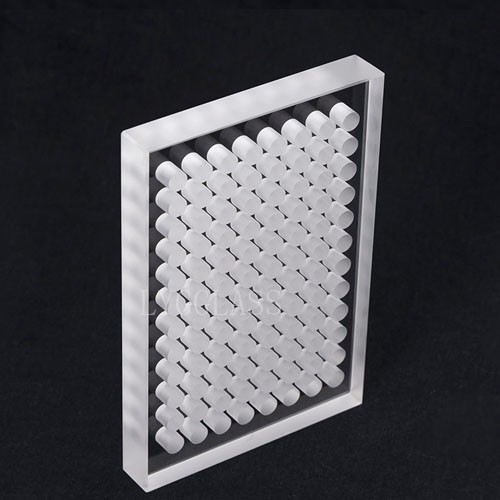

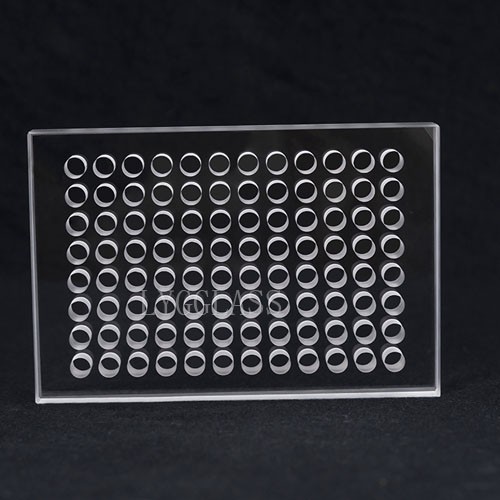

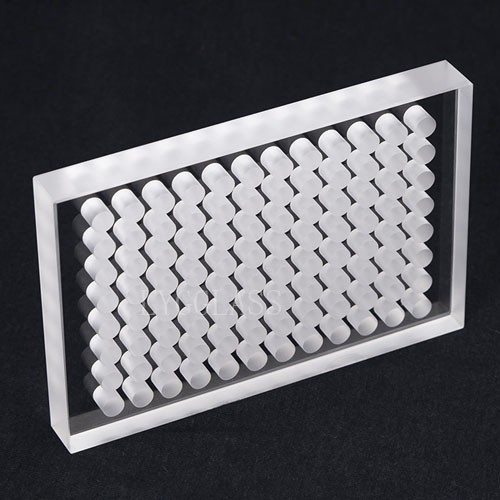

Anti-Corrosion Quartz 96 Well ELISA Plate

  • CategoryQuartz Apparatus
  • MaterialQuartz glass,Fused silica
  • SizeCustom
  • ColourTransparent
  • Work temperature 1000 degree
Share
Anti-Corrosion Quartz 96 Well ELISA Plate

The 96-well quartz ELISA plate is made of fused quartz and suitable for enzyme-linked immunosorbent assays, cell culture analysis, immunology, transgenic product identification, as well as medical clinical diagnostics and coagulation test analysis.

Material:
Far Ultraviolet quartz glass (JGS1)UV Grade 185---3500nm
Ultraviolet quartz glass (JGS2) Optical grade 240-2500nm
Infrared optical quartz glass ( JGS3) 260---3500nm

Dimensions

2mm base thickness. 422µL(D6.7mm x H12mm) well volume. outer size:128*85*14.5mm

Type

There are two types in appearance
One with a C-shaped edge and the other with a standard edge.
There are two types of processes:
Integral Molding: High temperature and acid-alkali corrosion resistant.
Adhesive Bonding: Not resistant to high temperatures or acid-alkali corrosion.

Advantage:
High Temperature Resistance: Quartz glass withstands temperatures up to 1000°C while maintaining stability.
Excellent Optical Properties: It offers high light transmittance and low light loss for various optical applications.

Chemical Stability: Quartz glass is highly resistant to most acids, bases, and chemicals, minimizing susceptibility to reactions.

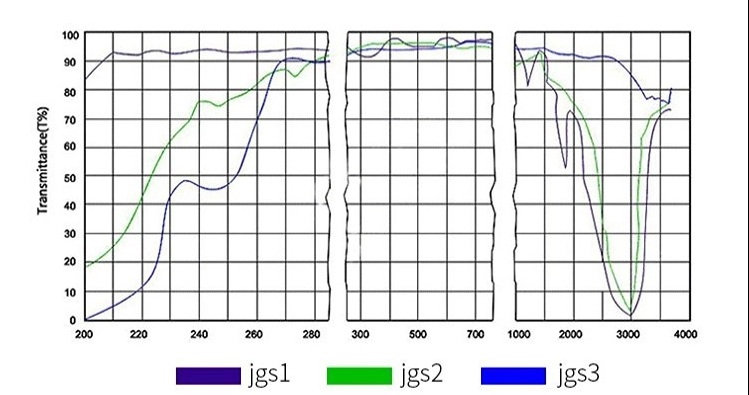

Transmittance
